Samsung Hard Drive PCB swapping replacement guide

Posted

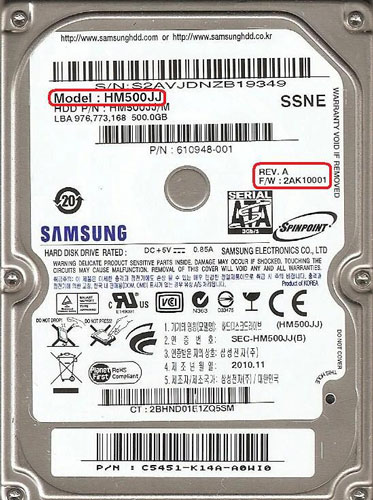

Swapping the printed circuit board (PCB) on Samsung hard drives requires matching 4 things “EXACTLY” for your best chance of success without having to swap any chips from your old PCB to the new PCB. We recommend matching the full model number (HM500JJ) and also the Revision (REV A) and the Firmware (F/W) (2AK10001) all of which can be found on the drive label. Not all Samsung hard drives have the Firmware (F/W) on the drive label as you can see from the next photo of Model number (HM501II). If this is the case with your hard drive, you will not be able to match the (F/W). The last thing that is required for the PCB swap on Samsung drives is matching the PCB number. The PCB number on Samsung drives is located on the PCB itself (S3M_REV.02 R00). Other Example of PCB numbers on Samsung drives are as follows: (BF41-00089A) (BF41-00108A) (BF41-00051A) (BF41-0015A)

If these 4 things are not matched “EXACTLY”, you will be able to get the drive to spin, but you will not be able to get the drive to be recognized to recover your data or use the drive. (See photos for examples).

If this is the case when you install the matching PCB you will need to transfer the 8 pin ROM chip from your original PCB to the matching PCB for the drive to be recognized in the bios to recover your data. These ROM chips are specific for each drive and a simple PCB swap with an exact match is not a guarantee without the ROM transfer.


Effective Electronics, LLC (www.effectiveelectronics.com) is a stocking distributor of Exact Donor Hard Drives and Exact Hard Drive Printed Circuit Boards for the Data Recovery field. We stock 30,000 hard drives and 15,000 printed circuit boards for hard drives. All of our drives have been professionally tested and DOD wiped. All of our printed circuit boards have been professionally tested and functioning 100%. We have been selling hard drives and printed circuit boards since 1999. We are professionals in the field of supplying Data Recovery companies with hard to find donor drives and PCB’s. Our website is designed with the Data recovery field as our number one priority! All of our drives are listed individually with the exact photo of each drive and all the important affiliated details to guarantee you get the exact donor drive you require.


HARD DRIVES LISTED WITH THESE DETAILS:


Seagate: Model#, SN#,PN#, FW#, Site Code, Date Code, Country of Origin, PCB label and chips if visible
Western Digital: Model#, Date Code, DCM#, SN#, Country of Origin, PCB label and chips if visible
Toshiba: Model#, Full HDD#, SN#, Country of Origin, PCB label and chips if visible
Fujitsu: Model#, PN#, SN#, Date Code, Rev#, FW#, Country of Origin, PCB label and chips if visible
Samsung: Model#, HDD PN#, SN#, REV#, FW#, Date Code, PN#, PCB label and chips if visible
Hitachi: Model#, SN#, MLC#, PN#, Date Code, Country of Origin, PCB label and chips if visible


PRINTED CIRCUIT BOARDS (PCB’s) LISTED WITH THESE DETAILS:

All of our printed circuit boards are listed with all the same above details, but we have also included all the chip numbers as they are all visible once they are removed from the drive.

(Our website www.effectiveelectronics.com is extremely user friendly which makes it very easy to navigate and find the exact drive or PCB for any application. Simply put the model drive you require in the Search box and you will see all the drives and PCB’s that we have that match your needed request(s). Checkout is simple, and we will normally ship the same day if the payment is received by 2:00pm est.)

(Please contact us if you are looking to purchase multiple qty's of any item and we can combine shipping). If you require faster shipping than we have in the listing, please contact us and we can make those arrangements as well. For all International buyers that have a UPS, FED-EX, DHL account, we will be more than happy to remove the shipping expense and ship the charges to your supplied account if contacted.

If you do not see the exact item you are sourcing on our website, please feel free to contact us with your drive details and we will see if we have the item in stock that you require that may not yet be posted to our website.

We look forward to having a long prosperous business relationship with your company and hope you find our service to be extremely helpful when you are sourcing your hard drives and PCB’s.
